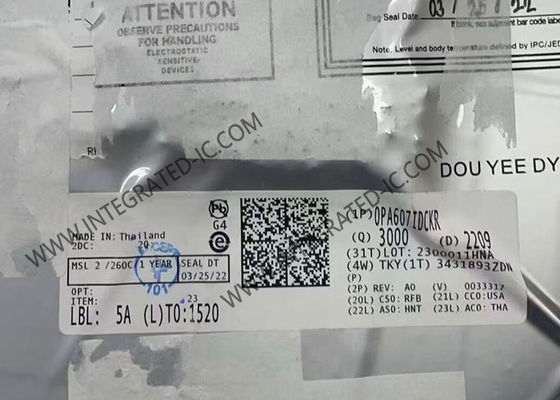

OPA607IDCKR Integrated Circuit Chip 50MHz Low-Power CMOS Operational Amplifier For Cost Sensitive Systems
OPA607IDCKR Integrated Circuit Chip 50MHz Low-Power CMOS Operational Amplifier For Cost Sensitive Systems
Açıklama
Parça numarası:
Opa607idckr
Kanal Sayısı::
1 kanal
GBP - Bant Genişliği Kazanma Ürünü::
50 Mhz
SR - Dönüş Hızı::
24 V/ABD
Voltaj Kazancı dB::
130 dB
CMRR - Ortak Mod Reddetme Oranı::
100 dB
OPA607IDCKR Integrated Circuit Chip 50MHz Low-Power CMOS Operational Amplifier For Cost Sensitive Systems
Product Description Of OPA607IDCKR
OPA607IDCKR is decompensated, minimum gain of 6 V/V stable, general-purpose CMOS operational amplifier with low noise of 3.8 nV/√ Hz and a GBW of 50 MHz. The low noise and wide bandwidth of the OPA607IDCKR devices make them attractive for general-purpose applications which require a good balance between cost and performance. The high-impedance CMOS inputs make the OPAx607 devices an ideal amplifier to interface with sensors with high output impedance (for example, piezoelectric transducers).
Specifications Of OPA607IDCKR
1 Channel
50 MHz
24 V/us
130 dB
100 dB
60 mA
10 pA
120 uV
5.5 V
2.2 V
900 uA
- 40 C
+ 125 C
3 dB Bandwidth:
9 MHz
en - Input Voltage Noise Density:
3.8 nV/sqrt Hz
Gain V/V:
6 V/V
In - Input Noise Current Density:
46 fA/sqrt Hz
Input Type:
CMOS
Ios - Input Offset Current:
10 pA
PSRR - Power Supply Rejection Ratio:
120 dB
THD plus Noise:
- 91.5 dB
Features Of OPA607IDCKR
Gain Bandwidth Product (GBW): 50 MHz
Quiescent Current: 900 µA (Typical)
Broadband Noise: 3.8 nV/√Hz
Input Offset Drift: 1.5 µV/°C (Maximum)
Offset Voltage: 120 µV (Typical)
Input Bias Current: 10 pA (Maximum)
Rail-to-Rail Output (RRO)
Decompensated, Gain ≥ 6 V/V (Stable)
Power Down Current: 1 µA (Maximum)
Supply Range: 2.2 V to 5.5 V
Applications Of OPA607IDCKR
Current-Sensing
Fish Finders and Sonar
Ultrasonic Flow Meters
Garden and Power Tools
Printers
Light Curtains and Safety Guards
Optical Modules
Handheld Test Equipment
PM2.5 and PM10 Particle Sensors
