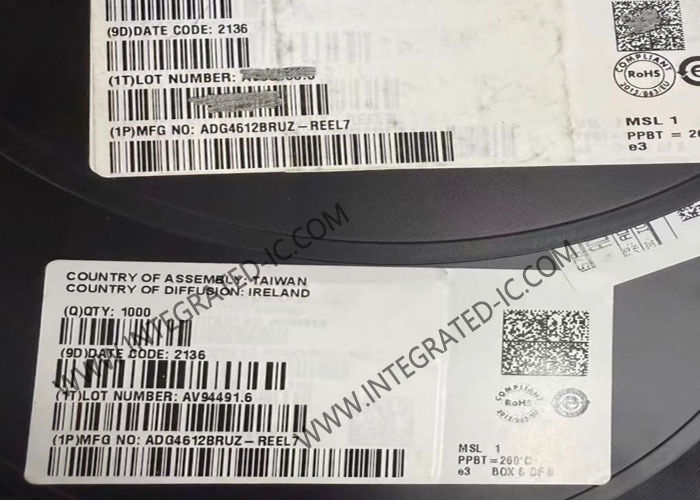

ADG4612BRUZ Integrated Circuit Chip Quad SPST Switches With 5Ω On Resistance
Product Description Of ADG4612BRUZ
ADG4612BRUZ contain four independent single-pole/ single-throw (SPST) switches. The ADG4612BRUZ switches are turned on with Logic 1 on the appropriate control input. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies.
Specifications Of ADG4612BRUZ
|
Switch Circuit
|
|
|
Multiplexer/Demultiplexer Circuit
|
|
|
Number of Circuits
|
|
|
On-State Resistance (Max)
|
|
|
Channel-to-Channel Matching (ΔRon)
|
|
|
Voltage - Supply, Single (V+)
|
|
|
Voltage - Supply, Dual (V±)
|
|
|
Switch Time (Ton, Toff) (Max)
|
|
|
-3db Bandwidth
|
|
|
Charge Injection
|
|
|
Channel Capacitance (CS(off), CD(off))
|
|
|
Current - Leakage (IS(off)) (Max)
|
|
|
Crosstalk
|
|
|
Operating Temperature
|
|
Features Of ADG4612BRUZ
Power Off Protection
Switch guaranteed OFF with no power supplies present Inputs are high impedance with no power
Switch turns OFF if input > VDD + VT
Over-voltage protection up to +16V
PSS Robust
Negative Signal Capability passes signals down to -5.5V
6.1Ω Max On Resistance
1.4Ω On Resistance Flatness
±3V to ±5.5V dual supply
3V to 12 V single supply
3 V logic-compatible inputs
Rail-to-rail operation
16-lead TSSOP and 16 lead 3mm x 3mm LFCSP
Applications Of ADG4612BRUZ
Hot swap applications
Data acquisition systems
Battery-powered systems
Automatic test equipment
Communication systems
Relay Replacement
