LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications
LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Büyük resim :  LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Ürün ayrıntıları:
Menşe yeri: CN
Marka adı: Original Factory
Sertifika: Lead free / RoHS Compliant
Model numarası: LSHM-120-06.0-F-DV-ASK-TR
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10
Fiyat: Contact for Sample
Ambalaj bilgileri: 40POS
Teslim süresi: 5-8 iş günü
Ödeme koşulları: T/T, L/C, Western Union

LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications

Açıklama
Parça numarası: LSHM-120-06.0-F-DV-ASK-TR Pozisyon sayısı: 40 Pozisyon
Saha: 0,5 mm (0,02 inç) Mevcut Derecelendirme: 2 bir
Voltaj derecesi: 160 VAC Veri oranı: 16 Gbps
Vurgulamak:

0.50mm Pitch LSHM Connectors

,

40 Position Razor Beam Connectors

,

14 Gbps Hermaphroditic Connectors

LSHM-120-06.0-F-DV-A-S-K-TR Connectors 0.50mm Razor Beam LSHM Connectors 40POS
Product Description
The LSHM-120-06.0-F-DV-A-S-K-TR is a 0.50mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip with optional shielding. This high-density, rugged connector is designed for board-to-board and board-to-cable applications, featuring EMI protection options. The hermaphroditic design with Razor Beam™ fine pitch contact system saves PCB space in all axes and is rated at 14 Gbps per contact.
Specifications
Connector Type Self Mating, Non-Gendered, Hermaphroditic
Number of Positions 40
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place, Shielded
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Mated Stacking Heights 8.5mm, 9mm, 10mm, 12mm
Height Above Board 0.293" (7.45mm)
Key Features
  • Shielded option for EMI protection
  • Lubricated option available
  • Up to 100 I/Os
  • Ten stack height options from 5 mm to 12 mm
  • Self-mating system reduces inventory cost
  • Parallel, perpendicular and coplanar systems
  • Current rating: 2.0 A max
  • Voltage rating: 160 VAC/226 VDC max
  • Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
  • Audible click when mated

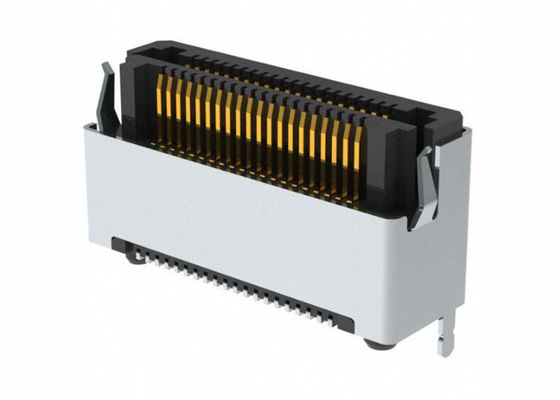

Product Image
LSHM-120-06.0-F-DV-A-S-K-TR LSHM Razor Beam Connectors 0.50mm Pitch 40 Position High-Speed 14 Gbps Hermaphroditic for Board-to-Board Applications 0
