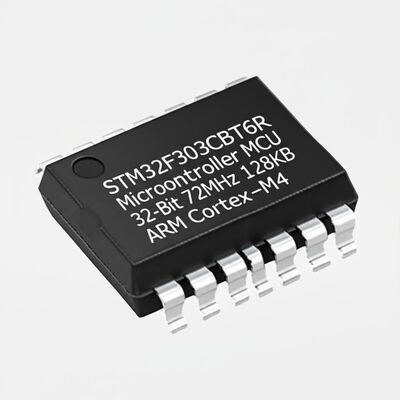

STM32F303CBT6TR Microcontroller MCU
32-Bit ARM Cortex-M4 processor operating at 72MHz with 128KB Flash memory, featuring advanced peripherals for industrial and embedded applications.
Product Overview
The STM32F303CBT6TR is based on the high-performance Arm® Cortex®-M4 32-bit RISC core with FPU operating at up to 72 MHz. This microcontroller incorporates a floating point unit (FPU), memory protection unit (MPU), and embedded trace macrocell (ETM). It features high-speed embedded memories (up to 256 KB Flash, up to 40 KB SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses.
Key Specifications
| Parameter |
Specification |
| Core Processor |
ARM® Cortex®-M4 |
| Core Size |
32-Bit |
| Speed |
72MHz |
| Connectivity |
CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals |
DMA, I2S, POR, PWM, WDT |
| Number of I/O |
37 |
| Program Memory Size |
128KB (128K x 8) |
| Program Memory Type |
FLASH |
| RAM Size |
32K x 8 |
| Voltage Supply |
2V ~ 3.6V |
| Data Converters |
A/D 15x12b; D/A 2x12b |
| Oscillator Type |
Internal |
| Operating Temperature |
-40°C ~ 85°C (TA) |
Advanced Features
- Arm® Cortex®-M4 32-bit CPU with FPU (72 MHz max)
- Single-cycle multiplication and HW division
- 90 DMIPS (from CCM), DSP instruction and MPU
- 128 to 256 Kbytes of Flash memory
- Up to 40 Kbytes of SRAM with HW parity check
- 8 Kbytes of SRAM on instruction and data bus (CCM)
- Four ADCs 0.20 μS (up to 39 channels) with selectable resolution
- Two 12-bit DAC channels
- Seven fast rail-to-rail analog comparators
- Four operational amplifiers usable in PGA mode
- Up to 24 capacitive sensing channels
- Up to 13 timers including 32-bit and 16-bit variants
- CAN interface (2.0B Active)
- Two I2C Fast mode plus (1 Mbit/s)
- Up to five USART/UARTs with multiple protocol support
- Up to three SPIs with I2S interface capability
- USB 2.0 full speed interface
- Serial wire debug, JTAG, and 96-bit unique ID
Operating Conditions
Operating voltage range: 2.0 V to 3.6 V
Temperature range: -40°C to +85°C
Comprehensive power-saving modes for low-power applications
