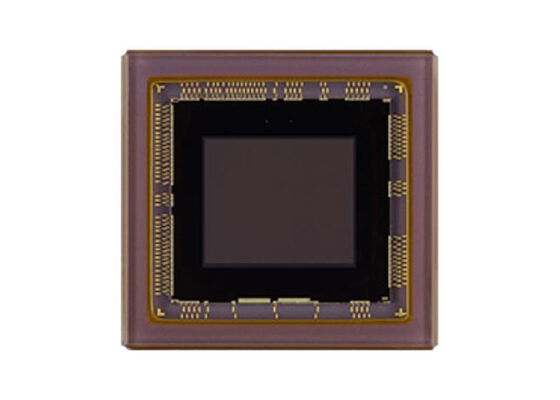

IMX264MZR CMOS Image Sensor with 4-way Polarization 11.1mm Diagonal and 35.7 FPS High Frame Rate

IMX264MZR is a polarization image sensor equipped with a four-way polarization element, capable of capturing polarized images in four directions with a single autofocus operation. The IMX264MZR supports high-frame-rate photography at up to 35.7 frames per second (12-bit ADC). In Region of Interest (ROI) mode, which allows any area to be defined, a single region can be set. A trigger mode that controls exposure time via an external pulse provides a variety of exposure methods.

• Element structure: Includes 4-way polarization elements
• Image size:
  • Full-pixel mode: Diagonal 11.1 mm (2/3 inch)
  • Full-HD mode: Diagonal 7.7 mm (1/2.35 inch)
• Effective pixels: 2464 (H) × 2056 (V), approx. 5.07 megapixels
• Pixel size: 3.45 µm (H) × 3.45 µm (V)
• Input drive frequency: 37.125 MHz / 54.0 MHz / 74.25 MHz
• Package: 226-pin LGA
• Supply voltage VDD (typical): 3.3 V / 1.8 V / 1.2 V
• Sensitivity (monochrome) - typical [F8]: 342 mV
• Sensitivity (color) - typical [F5.6]: 430 mV
• Saturation level (min): 1001 mV

• Equipped with a 4-way polarizer on the image sensor, enabling the capture of polarized images in four directions with a single autofocus operation
• Global shutter function, enabling the capture of high-quality images with zero distortion at the focal plane
• Utilizes column-parallel A/D conversion technology for high frame rates
• Equipped with ROI and trigger functions
